Device commissioning

The commissioning guide below assumes that the XS4 Face Device is already installed on site and now needs pairing with an XS4 Face Server.

Once an XS4 Face Device is flashing yellow, it is ready to be commissioned to a XS4 Face Server.

Prerequisites

For these next steps, please ensure:

• The XS4 Face Device is powered on and flashing yellow.
• The XS4 Face Device is on the same network as the XS4 Face Server.
• The XS4 Face Server is online and showing as green in the XS4 Face Console.
• The XS4 Face Server is connected to the ACS.

Step-by-step

The Admin Operator receives a welcome email when the Salto partner provides access to their site within the XS4 Face Console. The email contains a link to the correct console for their region.

1. Log in to the XS4 Face Console for the correct region.
2. Select the site from the drop-down menu in the left-hand pane.
3. Select the Devices button in the left-hand pane.

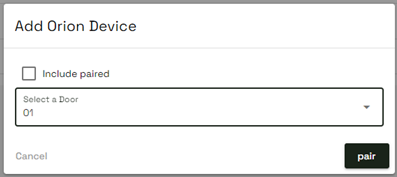

4. In the upper-right hand corner, select Add XS4 Face Device. A modal pops up titled Add XS4 Face Device.
5. If the site has multiple servers, select the server to commission the XS4 Face Device to by selecting from the drop-down.
6. If this XS4 Face Device is being commissioned to the same door as another XS4 Face Device (such as when controlling entry and exit of this door), check the Include paired checkbox.

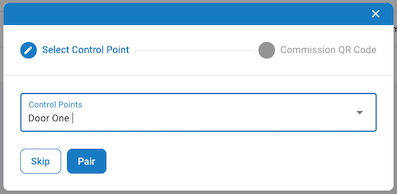

7. In the drop-down Select a Door, select the door as named in the ACS.

Doors to not need to be online to be paired with an XS4 Face Device, but they must be configured in the ACS.

8. Select pair.

9. Show the QR code that appears to the XS4 Face Device that is installed at this door. Watch for the following behavior on the XS4 Face Device:

   • The LEDs on the XS4 Face Device briefly flash blue, then flash green.
   • The LEDs turn off while the XS4 Face Device restarts.
   • The LEDs flash blue briefly while it initializes.
   • The LEDs turn white and stay static.

   In the XS4 Face Console, check that the Status of the XS4 Face Device that has just been commissioned has changed from commissioning to Ready.

10. Repeat from step 5 for each XS4 Face Device that requires commissioning.
